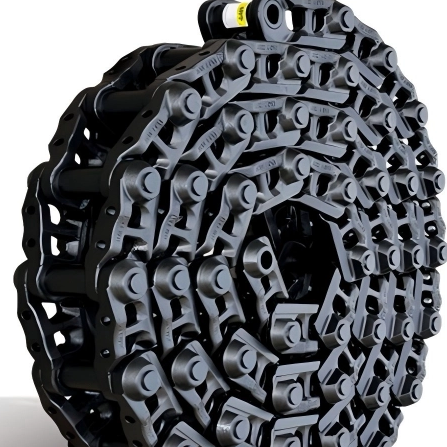

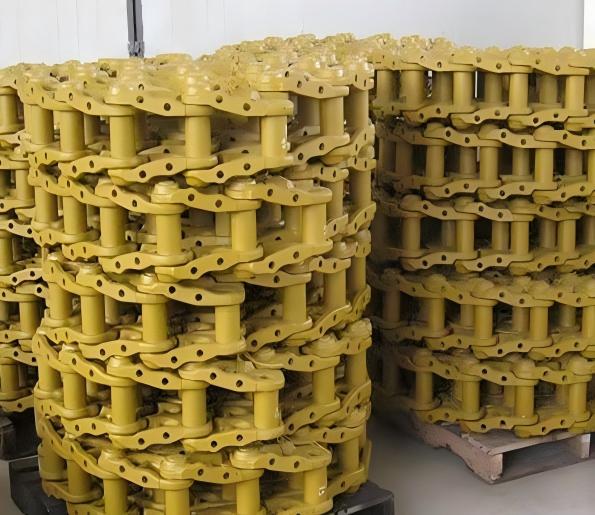

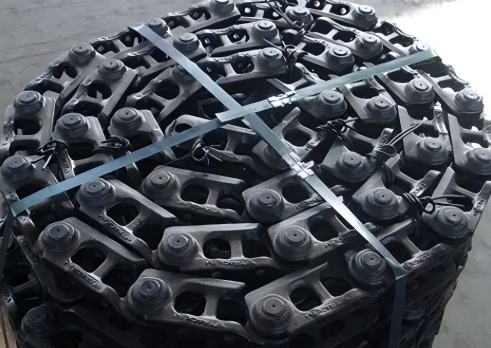

Comprehensive Track Chain Assembly Overview
The track chain assembly serves as the fundamental backbone for heavy-duty crawler machinery, translating raw engine torque into unstoppable forward momentum. When you run your hand along the precisely machined links, you can feel the dense, cold reality of high-grade steel engineered for the earth's most unforgiving environments. Coated in a light, protective industrial oil that carries a distinct metallic scent, each assembly is prepared to face immediate exposure to abrasive elements. Rather than merely supporting the immense weight of excavators and bulldozers, this undercarriage component actively absorbs the punishing shocks of uneven terrain, ensuring the operator experiences a stable platform while the machine maintains optimal traction across shifting landscapes.
Advanced Material Composition and Heat Treatment
The longevity of any undercarriage system relies heavily on its metallurgical foundation. We utilize specialized high-strength, wear-resistant steel alloys that undergo a rigorous, multi-stage deep heat treatment process to maximize operational lifespan.
Deep-Hardened Pins and Bushings
The pins and bushings endure the most severe friction during operation. Through precise induction hardening, we achieve a critical balance: an exceptionally hard outer shell that resists abrasive wear from silica sand and crushed rock, paired with a ductile, shock-absorbing core. This dual-property structure prevents the brittle fractures that often plague standard components when a heavy machine drops suddenly onto solid granite.
Forged Link Integrity
Each link is drop-forged to align the internal grain structure of the steel with the directional loads it will face in the field. This forging process eliminates microscopic internal voids, dramatically increasing the tensile strength required to pull massive loads through deep mud and steep inclines without stretching or deforming over time.
Core Technology and Structural Design
Internal friction and structural shifting are the primary enemies of track longevity. Our engineering addresses these mechanical issues at the microscopic level to reduce overall component wear.
Anti-Walking Pin Fixation: Utilizing advanced positive pin retention mechanisms, the design effectively eliminates "pin walking"—a common failure where lateral forces push the pin out of alignment. This ensures the track maintains its precise geometry over thousands of hours of operation.
Sealed and Lubricated System: A sophisticated sealing architecture traps synthetic lubricants inside the pin and bushing joint while actively repelling exterior contaminants. This drastically reduces internal metal-on-metal grinding, eliminating the harsh, screeching sounds associated with dry tracks and minimizing end-play generation.
Optimized Link Pitch: The precise distance between pin centers is strictly controlled during manufacturing, ensuring perfect engagement with the drive sprocket. This reduces the characteristic "slapping" vibration and translates to a smoother ride and less mechanical fatigue on the final drive components.
Application Scenarios and Environmental Adaptability
Heavy machinery operates in diverse and often hostile conditions. This track chain assembly is engineered with specific tolerances to accommodate extreme environmental shifts, ensuring continuous operation whether the machine is breaking ground in a frozen tundra or moving earth in a sweltering desert.
Operating Environment | Performance Capability |
|---|
Arctic Climates (-45°C) | Maintains structural ductility; specialized synthetic seals resist cracking and shrinking, keeping the vital lubricant active and contained. |
Tropical/Desert Climates (50°C) | Thermal expansion is managed through precise gap tolerances; seals prevent the ingress of ultra-fine, highly abrasive airborne dust. |
High-Abrasion Mining | Thicker wear surfaces on the rail links provide sacrificial material, significantly extending the operational window before replacement is necessary. |
Specifications and Customization Capabilities
Recognizing that no two job sites are identical, we offer a broad spectrum of dimensional specifications and tailored modifications to match exact operational demands. Our standard production covers an extensive range of track pitches, spanning from 240mm for medium-duty construction equipment up to 395mm for massive mining excavators.
Beyond standard sizing, the assembly accommodates various track shoe configurations. For aggressive penetration in hard-packed dirt, single grouser shoes can be fitted. For marshy or clay-heavy environments, we provide designs featuring specialized mud-relief holes that prevent material packing, which would otherwise over-tension the chain and damage the idler. We actively work with procurement teams to analyze specific soil conditions and machine weights, delivering a customized undercarriage solution that maximizes traction while minimizing ground pressure.
Installation Efficiency and Maintenance
Downtime in the field translates directly to lost productivity. Therefore, this track chain assembly is designed with modularity and rapid installation at the forefront of its engineering to keep your fleet operational.
Master Link Options: We provide both traditional press-fit master pins and highly convenient T-pin (split master link) configurations. The split design significantly simplifies the process of breaking and joining the track in remote locations, requiring fewer specialized hydraulic presses and reducing physical strain on maintenance crews.
Predictive Maintenance Support: The links feature integrated wear indicators. These visual cues allow fleet managers to accurately measure rail degradation over time, facilitating predictive maintenance schedules rather than reacting to sudden, costly failures.
Component Accessibility: The modular architecture ensures that if a localized section suffers catastrophic damage from a hidden rock strike, individual links or segments can be extracted and replaced without necessitating an entirely new chain loop.
Before any track chain assembly leaves the facility, it is subjected to a battery of punishing physical tests designed to simulate years of heavy operational abuse. Our quality assurance protocol begins with ultrasonic flaw detection, scanning the internal structure of every forged link and machined pin to guarantee the absence of micro-fissures that could propagate under heavy stress.
Following assembly, the entire chain undergoes dynamic rotation and meshing analysis. We run the track over calibrated sprockets to verify that the pitch dimensions are flawless, ensuring smooth engagement without binding or excessive vibration. Finally, extreme tension testing is applied, pulling the chain with hydraulic force that far exceeds the maximum drawbar pull of the intended machinery. This guarantees that the track assembly possesses the ultimate load-bearing capacity and long-term running stability required to keep your heavy equipment moving forward, day after day.
