Heavy-Duty Drive Sprocket for Excavators

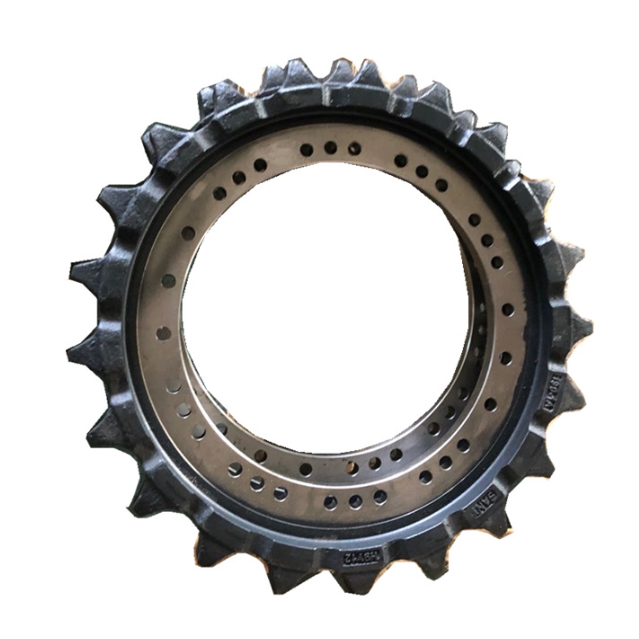

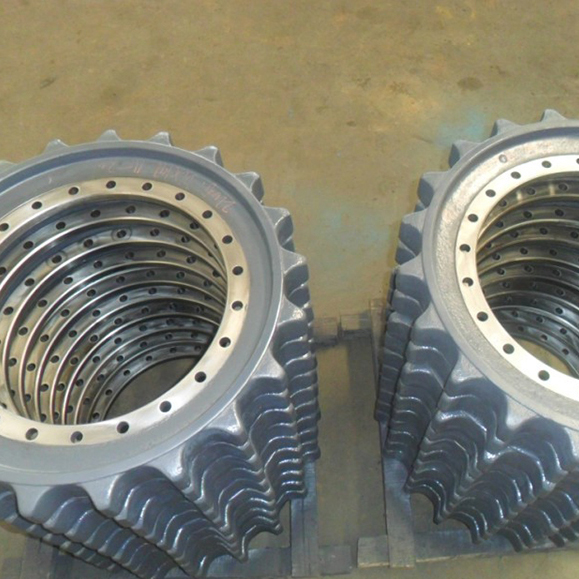

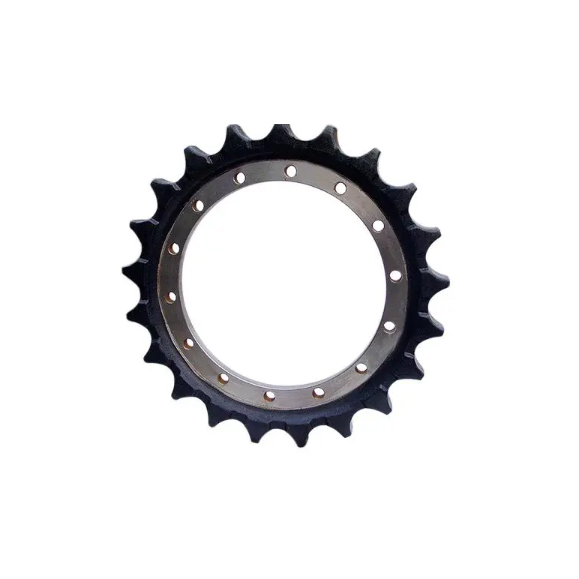

Drive Sprocket Overview

Every power transmission system relies on the precise interaction between its driving and driven components. This drive sprocket is engineered to serve as the dependable heart of your mechanical assembly, ensuring that rotational force is transferred with absolute consistency. Running your fingers along the precisely chamfered edges, you can feel the meticulous machining process that removes microscopic burrs, leaving a smooth, tactile finish that prevents premature wear on connecting links. The distinct metallic resonance when handling the component speaks to its dense, void-free internal structure. Designed for demanding mechanical environments, this sprocket minimizes parasitic power loss while maintaining a firm, unyielding grip on the roller chain. It translates raw motor output into controlled, directional movement without hesitation, structural flex, or the energy-draining friction commonly found in standard stamped alternatives.

Advanced Material Composition

The foundation of dependable rotational transfer lies in the raw materials selected for manufacturing. Buyers can specify either aerospace-grade 7075 T6 aluminum alloy or high-strength forged steel, depending on specific weight restrictions and load-bearing requirements. The aluminum variant offers exceptional weight reduction, which significantly decreases rotational mass and improves throttle response in dynamic applications, all while retaining immense tensile strength. Conversely, the forged steel option provides maximum resilience against extreme shock loads. The forging process aligns the internal grain structure of the steel, creating a formidable barrier against microscopic stress fractures that often plague cast components during continuous, heavy-duty operation.

Innovative Three-Piece Architecture

Moving beyond conventional single-piece casting, this component utilizes an advanced three-piece configuration. The assembly consists of a wear-resistant outer gear ring, a rigid inner carrier, and a secure stainless steel retaining ring. This modular approach incorporates a floating drive mechanism, which allows for minute radial adjustments during operation. This subtle flexibility absorbs mechanical vibrations and compensates for minor alignment discrepancies, ensuring absolute stability across the entire drivetrain during prolonged operational cycles.

Precision Transmission Dynamics

Efficiency in mechanical power delivery requires an exact geometric match between the sprocket teeth and the chain rollers. The tooth profile on this drive sprocket undergoes rigorous CNC profiling to achieve an optimal engagement angle. As the chain rollers make contact with the sprocket valleys, the meticulously calculated clearance prevents binding while eliminating excessive slack. This exacting geometry ensures that each roller seats deeply and securely into the root of the tooth, effectively eliminating transmission slip even under abrupt acceleration or heavy torque loads.

Furthermore, this precise fitment drastically reduces the harsh metal-on-metal impact that typically causes drivetrain noise. As the chain wraps around the circumference, the transition from one tooth to the next feels fluid and controlled. The result is a remarkably quiet operation that delivers smooth, highly efficient power output, tangibly reducing the overall mechanical fatigue and vibrational feedback transmitted to adjacent bearings, shafts, and machinery housings.

Streamlined Installation and Maintenance

In intensive operational environments, such as large-scale agricultural harvesting or continuous industrial manufacturing, every minute of machinery downtime carries a heavy financial burden. To address this, the drive sprocket features a maintenance-friendly design that fundamentally changes how servicing is performed in the field. Mechanics and technicians can quickly swap out the outer gear ring without the need to dismantle or remove the central carrier from the main drive shaft.

This intelligent engineering bypasses the traditional, labor-intensive process of extracting the entire unit with specialized pullers. Because the inner carrier remains securely mounted to the shaft, there is absolutely no need to reapply chemical thread lockers or weave new safety wire through the mounting bolts. This straightforward replacement procedure drastically reduces the time required for routine wear-and-tear servicing, allowing critical machinery to return to active duty with minimal delay and significantly lowering long-term maintenance overhead.

Technical Specifications and Equipment Compatibility

Versatility in integration is a critical factor for diverse mechanical applications. The sprocket is engineered with a zero-offset profile, standard bolt hole spacing, and multiple center bore diameters. This standardized approach guarantees a perfect fit across a wide spectrum of equipment. Whether adapting to the harsh, dust-filled environments of agricultural machinery, the high-speed demands of heavy motorcycles, or the strict, precise requirements of automated industrial conveyors, the dimensional accuracy remains strictly consistent.

Available Configurations and Finishes

• Tooth Count Variations: Available in a comprehensive range from 10T to 54T, allowing engineers and procurement teams to finely tune the final drive ratio for either maximum torque multiplication or higher top-end rotational speeds.

• Surface Treatments: Options include a deep anodized black finish for enhanced surface hardness and UV resistance, or a polished chrome plating that provides a formidable barrier against moisture, chemical exposure, and corrosive agents.

• Alignment Accuracy: The zero-offset design ensures proper chain tracking straight out of the box, preventing premature lateral wear on the chain link plates and extending the life of the entire drive system.
