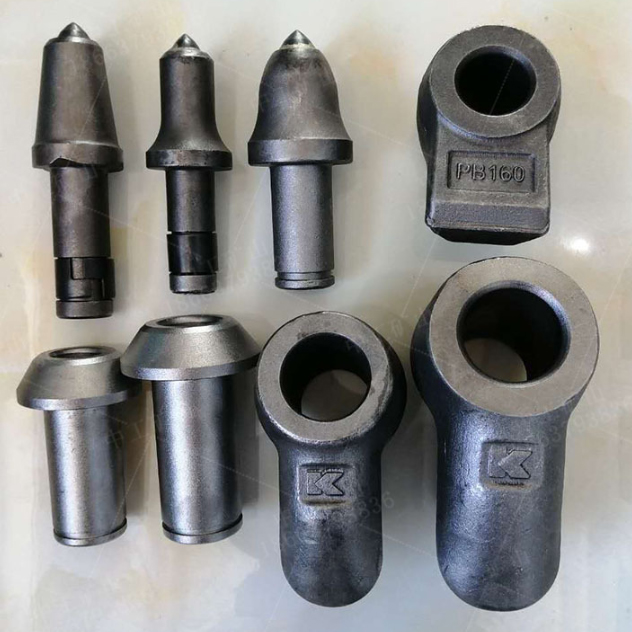

Heavy-Duty Cutting Picks: Engineered for Maximum Material Removal
The excavation and material extraction sectors demand ground-engaging tools capable of withstanding immense mechanical stress. These heavy-duty cutting picks are engineered to fracture, mill, and crush compacted strata, ranging from aged asphalt to solid granite. By combining a dense, impact-resistant core with an ultra-hard penetration point, these tools maintain their structural integrity under severe shock loads. Operators rely on the consistent wear profiles of these picks to calculate project timelines and control consumable expenditures accurately. The physical heft of the tool immediately conveys its industrial purpose, designed to translate the massive rotational torque of milling drums and cutter heads directly into efficient material removal. Every aspect of the profile is calculated to reduce drag and promote the smooth flow of excavated debris away from the cutting face, keeping the machinery operating at peak capacity.
Material Composition & Structural Design
At the core of the cutting pick's performance is a dual-material construction strategy. The primary body is forged from high-strength alloy steel. During the forging process, the internal grain structure of the steel is aligned to follow the contours of the tool, significantly enhancing its resistance to bending and shear forces. This steel body possesses a smooth, heavy metallic feel, engineered to absorb the continuous, punishing vibrations generated during rock strikes. Fused to this resilient body is a premium tungsten carbide tip. The carbide insert feels noticeably denser and features a distinct, slightly textured surface. This specific grade of tungsten carbide is formulated to balance extreme hardness—necessary for penetrating abrasive geology—with sufficient fracture toughness to prevent shattering when encountering unexpected voids or harder rock inclusions.
Specialized Tip Geometries for Varied Strata
Geologic formations and man-made surfaces present vastly different resistance profiles, necessitating specific tip geometries to optimize penetration and minimize tool wear. Selecting the correct profile directly influences the machine's advance rate and fuel consumption.

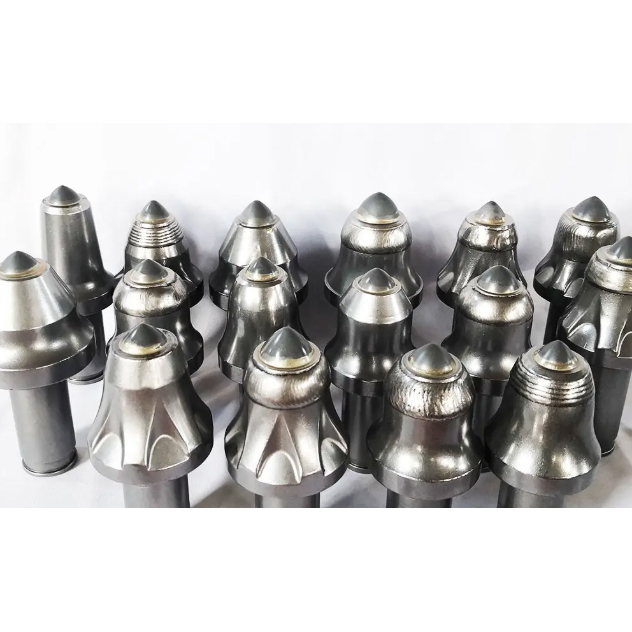

Mushroom Profile: Features a wider, rounded carbide head designed for highly abrasive conditions, offering maximum carbide volume to delay wear and protect the underlying steel body from washboarding.
Cylindrical Profile: Engineered for continuous, steady cutting in relatively uniform materials, providing a consistent cutting edge that maintains its shape over extended operational periods.
Conical Profile: The standard for aggressive penetration. Its sharp point creates focused point-loading, ideal for fracturing aged asphalt, concrete, and layered sedimentary rock with minimal downward pressure.
Flat Profile: Specifically shaped for trenching, grading, and surface leveling tasks where a smooth, uniform floor finish is required after the material has been extracted.
Advanced Surface Armor and Wear Resistance
Operating in highly abrasive environments subjects the steel body to severe friction, often eroding the steel before the carbide tip is fully utilized. To combat this premature wear, the cutting picks feature advanced surface reinforcement options that significantly extend the tool's lifecycle.
Protective Coatings and Overlays

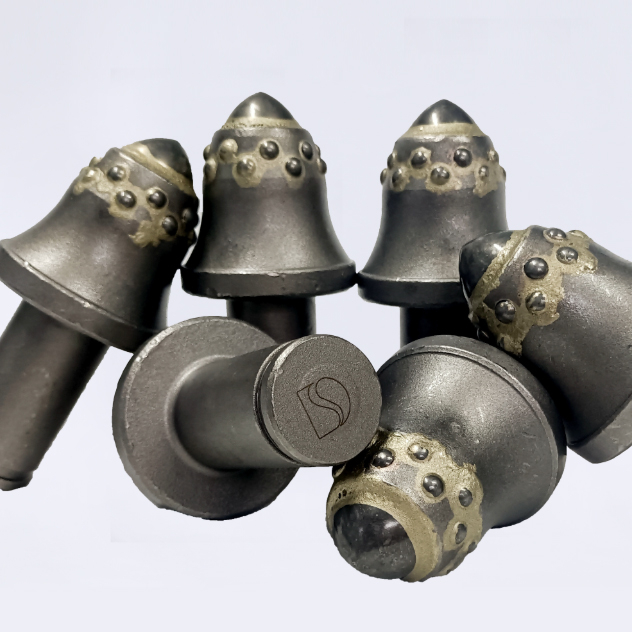

Depending on the specific abrasive nature of the target material, the steel body can be fortified with specialized coatings. The application of a tungsten carbide matrix or chromium carbide overlay creates a dark, rugged band of protection around the upper portion of the pick. For the most demanding conditions, ceramic inserts or diamond-infused coatings are integrated into the primary wear zones. These armored additions provide a hardened shield that deflects abrasive particles, preventing the steel from washing away and ensuring the carbide tip remains securely supported throughout its intended operational lifecycle.
Equipment Compatibility & Shank Specifications
Integration with existing machinery fleets is critical for maintaining operational momentum. These cutting picks are manufactured to precise dimensional tolerances, ensuring a secure and exact fit within standard tool holder systems across various equipment brands.
Shank Diameter | Primary Equipment Application | System Compatibility |
|---|
30mm | Light road milling machines, compact trenchers | Standard 30mm blocks (Wirtgen, Betek) |
38mm | Heavy road planers, soil stabilizers, surface miners | Wirtgen, Betek, Kennametal standard blocks |
42mm | Continuous miners, heavy-duty rock trenchers | Sandvik, Kennametal heavy-duty systems |
The precision machining of the shank ensures that the pick seats perfectly within the base block. This tight tolerance minimizes micro-movements that can cause premature wear to the holder itself, protecting the more expensive components of the milling drum from structural damage.
Demanding Application Scenarios
The versatility of these cutting tools allows them to perform across a broad spectrum of heavy civil and mining operations. In road milling, the picks aggressively tear through aged, sun-baked asphalt, leaving behind a textured, grooved surface that smells of pulverized bitumen, perfectly prepped for new paving layers. During surface mining operations, the tools continuously strike hard coal or iron ore seams, enduring constant vibration and abrasive dust clouds. In trenching and underground tunneling, the picks are tasked with breaking through solid rock and compacted, frozen ground. The forged steel and carbide construction ensures that regardless of the environment—whether surrounded by abrasive silica dust or subjected to the heavy impacts of fractured granite—the tools deliver consistent material extraction rates.
Field Maintenance & Operational Efficiency
Minimizing machine downtime during tool changeovers directly impacts project profitability. The retention system of these cutting picks relies on an optimized clamping sleeve design. This sleeve, typically crafted from tempered spring steel, compresses tightly when driven into the tool block. The operator experiences a distinct, tactile engagement—a firm, solid seating—confirming the pick is locked in place. While holding the tool securely to prevent vertical loss, the sleeve maintains just enough clearance to allow the pick to rotate freely around its axis during operation. This continuous rotation is vital, as it ensures the carbide tip and steel body wear evenly, maintaining a symmetrical cutting profile and preventing premature failure on a single side. When replacement is necessary, the optimized extraction grooves allow for rapid removal using standard punch tools, getting the drum back into the cut swiftly and keeping the project on schedule.
